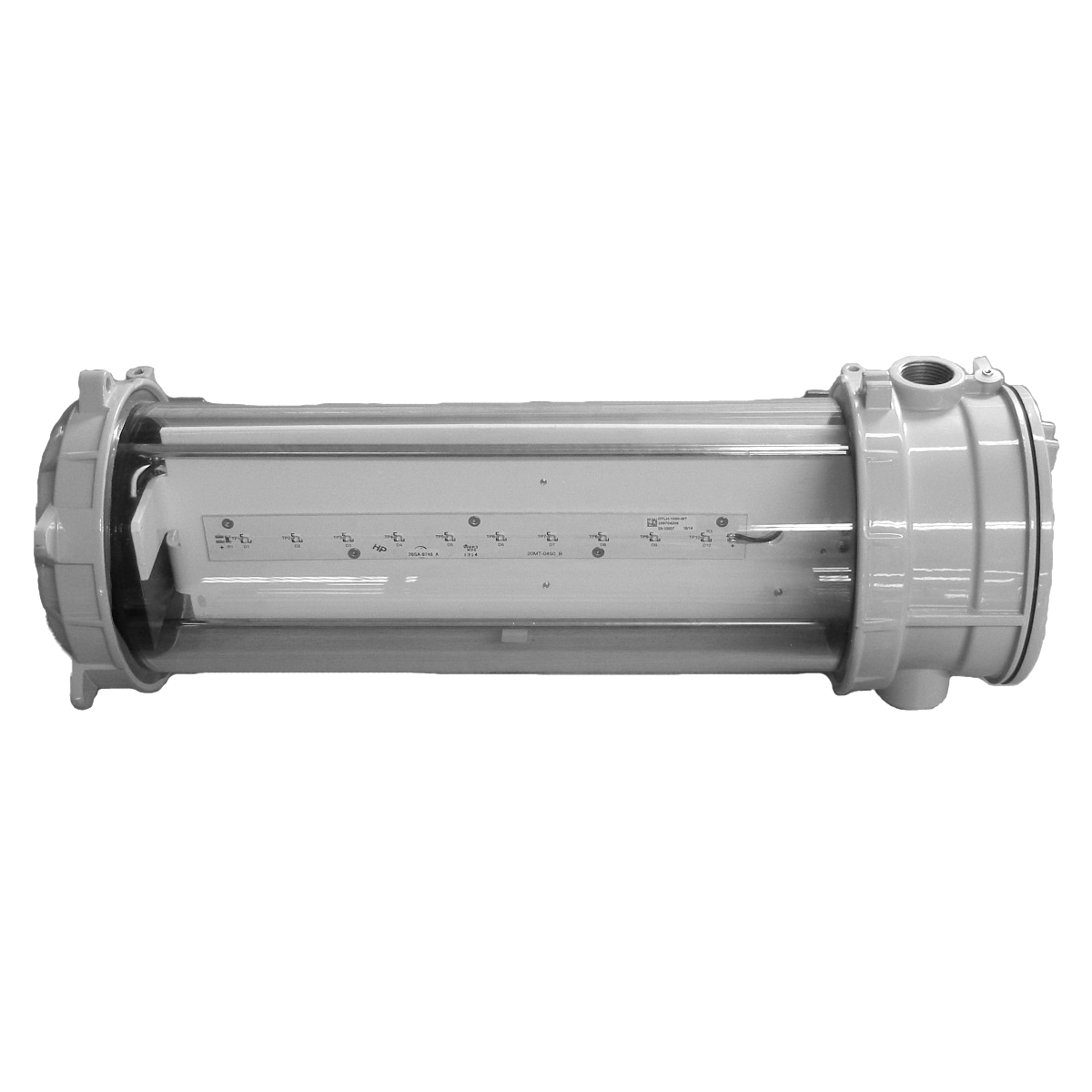

Emerson Appleton™ ATX™ FDLED Series LED Arealight Zone 1 Luminaires

400-4700 lumens, 60000 hours+ life, up to 103 lm/w, battery back-up

Certification Type Zone 1, 2, 21, 22.

Produktnummer: FDLED

BESKRIVELSE

Emerson ATX™ FDLED Series Flameproof LED Luminaires can be installed in hazardous areas designated as Zone 1 and 2 – 21 and 22. They are ideal for use in locations where a high degree of corrosion resistance is required and for indoor/outdoor use where protection against dirt, water and moisture is necessary.

Features

Typical applications include oil refineries, petrochemical facilities, pulp and paper mills, painting facilities, sewage and water treatment facilities, warehouses, underground tunnels and general manufacturing facilities
Impact resistant borosilicate glass sealed tube
Easy access to LED array through gray painted aluminum threaded entry cap
Supplied with O-ring for improved ingress protection
Corrosion-resistant gray painted aluminum
Supplied with energy efficient electronic driver on a removable gear tray
Supplied with external and internal ground/earth connection
Fixture supplied with one M20 blanking plug
Easy connection to wire and disconnect with plug-in terminal blocks

SPESIFIKASJONER

Product data

ATEX/IECEx Certifications and Compliances:	Zone 1 and 2 - 21 and 22; Ex II2GD; Ex d IIB (4725 lm version); Ex d IIB+H2 (2400 lm version); Ex d IIC (400 lm version); IK09 (400 and 2400 lm version); IK08 (4725 lm version); IP66/68
Voltage:	48/110/220V DC; 230V AC 50Hz 110-254V AC, 50/60 Hz
Retrofit Equivalents:	1x18W - 2x36W Fluorescent
Lumens:	400 - 4,725
Efficacy:	Up to 103 lm/w
Color Temperatures:	5650K
CRI:	70+
Ambient Temperature:	-55°C to +60°C
LED Lumen Depreciation (L70):	60,000+ hours
Replaceable Components:	LED Driver, Borosilicate Glass

DOKUMENTASJON

Datasheet:	Emerson Appleton™ ATX™ FDLED Series [0,2 MB]
Selection Guide:	Appleton™ LED Luminaires Selection Guide for ATEX/IECEx [0,22 MB]
