karl_dose_tucana_6_LED

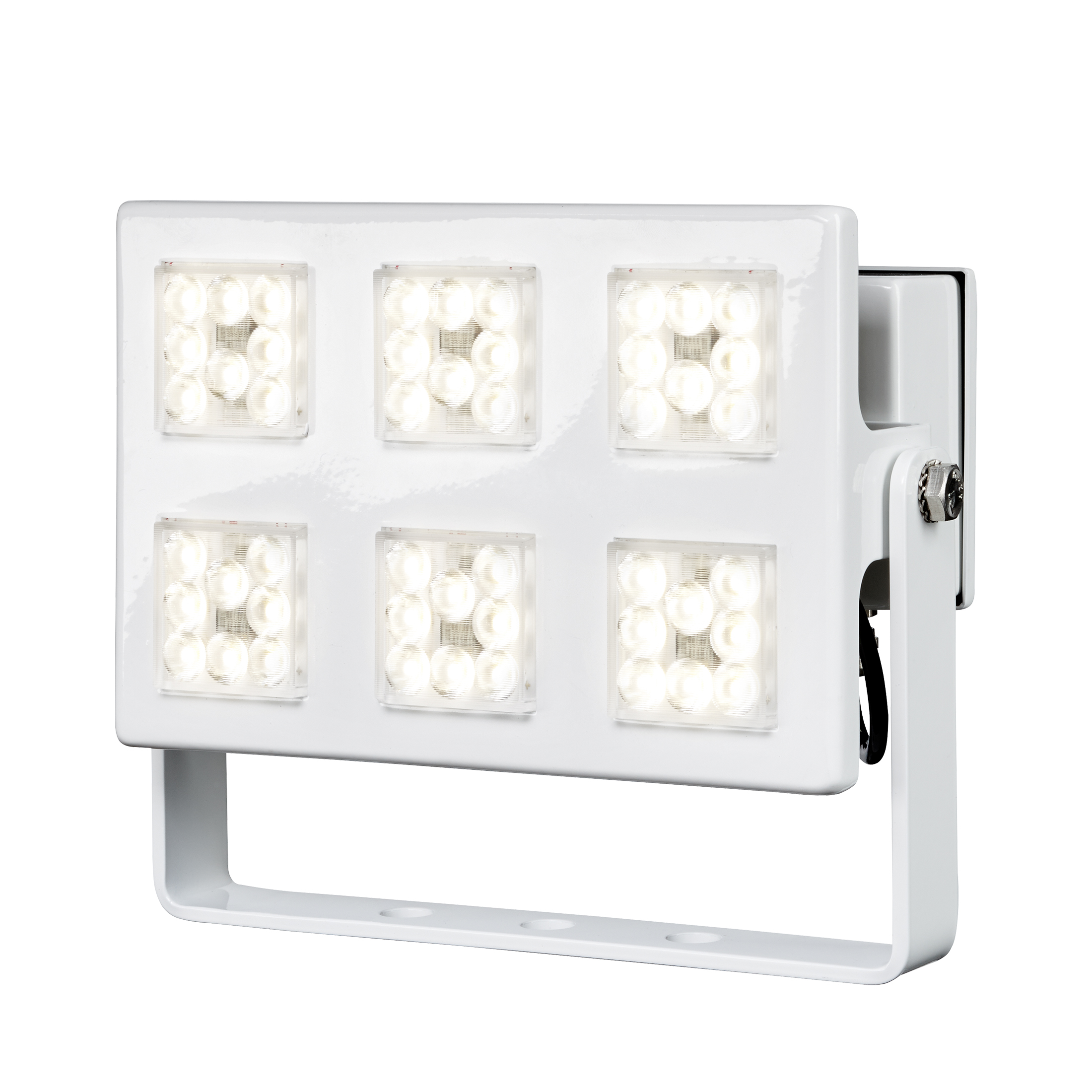

Dose Tucana 6 LED Floodlight, 60W, 120°x20°

IP 67, 5700 lm, partial stainless steel
Produktnummer: Tucana 6 LED 120x120
BESKRIVELSE
  • IP 67
  • Holding frame, connection box and bracket made of stainless steel
  • Output power: approx. 1.000 lm / LED module
  • Made in Germany

Each floodlight can be individually assembled with LED modules 45°x20° and 120°x120°:

  • 45° x 20° for spot lighting
  • 120° x 120° for area lighting

On request, we can adjust the floodlight to your needs and also offer other combinations and sizes.

Tucana 6 LED

  • 6 x High Power LED modules
  • Input voltage: 230V AC or 24V DC
  • Luminous flux: approx. 5.678 lm
  • Light intensity in 10 m: approx. 6 lx
  • Light intensity in 30 m: approx. 12 lx
  • Illuminated area in 10 m: ø 34,6 m
  • Illuminated area in 30 m: ø 104 m
  • Optical light output ratio: 94 lumen / watt
