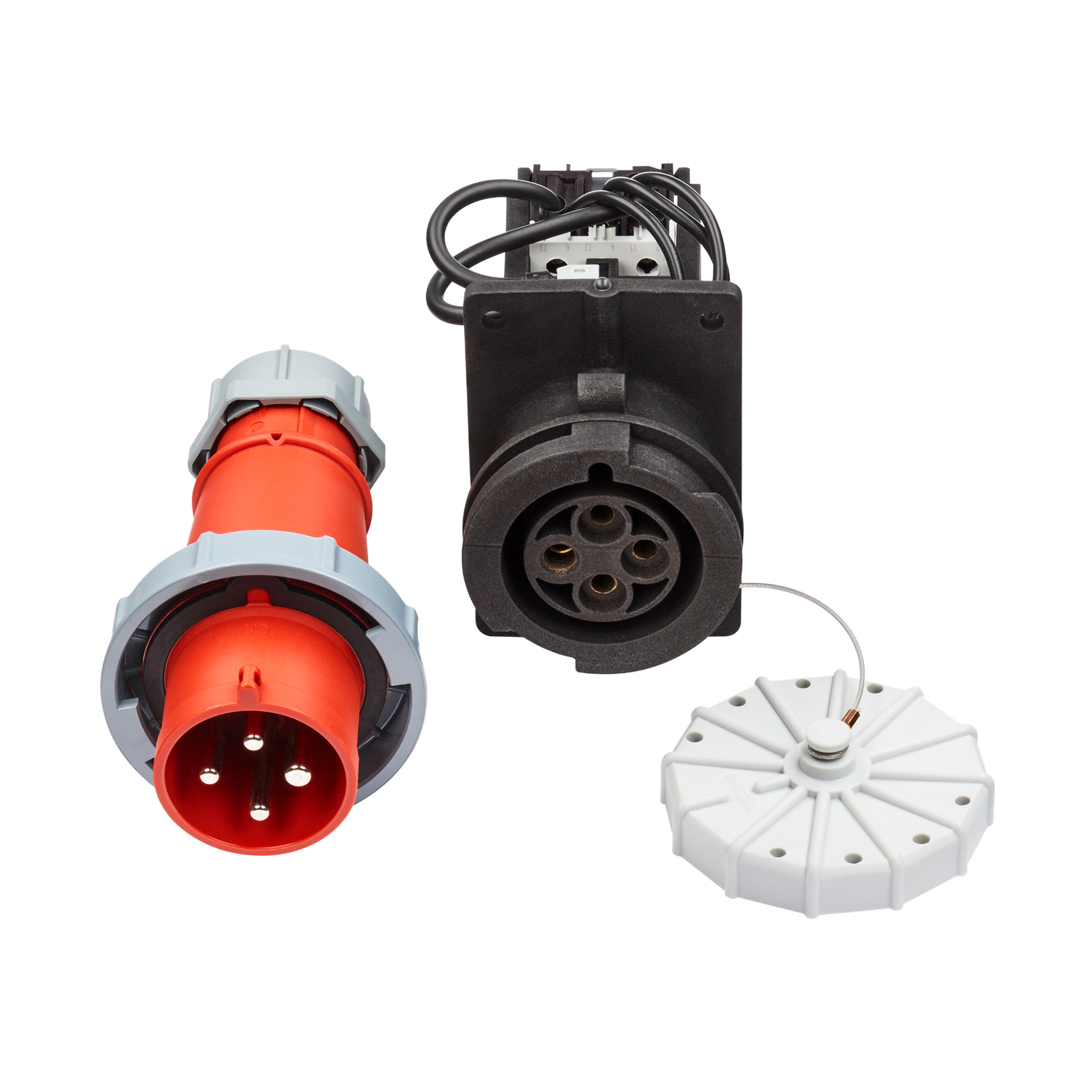

Dose Snappy Container Socket with SpeedPlus Technology

Faster, smarter and safer, non-metallic flange
Produktnummer: Dose Snappy
BESKRIVELSE

The new Speed+ Generation Technology

  1. Insert plug
  2. Secure with bayonet

The light lit green, when the socket are completly connected.

Features

  • IP 67
  • Stainless steel housing
  • Plastic flange without external switching devices
  • Cable gland brass M24x1,5 up to M72x2 optional
  • 3P+PE
  • 32A
  • 380, 400 - 440V
  • 50/60 Hz
  • Circuit breaker 10 kA (25 or 32kA on request)
  • Powder-coated on customer request
  • Switch mountening with Speed technology
  • No operation rods in internal space
  • Maximum safety, despite simplified connector alignment, no electric arcs thanks to “internal shut down device”
  • Automatic switching operation locking mechanism
  • Simple and fast handling by mono-linear insert control
  • Locking by turning the bayonet cap
  • As an option, the switching state can also be displayed via optical waveguide technology
  • Switch-off process take place in the first milimeter of the lifting motion when you pull out the plug
  • Lower weight
  • Low space requirement
  • Made in Germany
