karl_dose_auriga_200_V3_LED

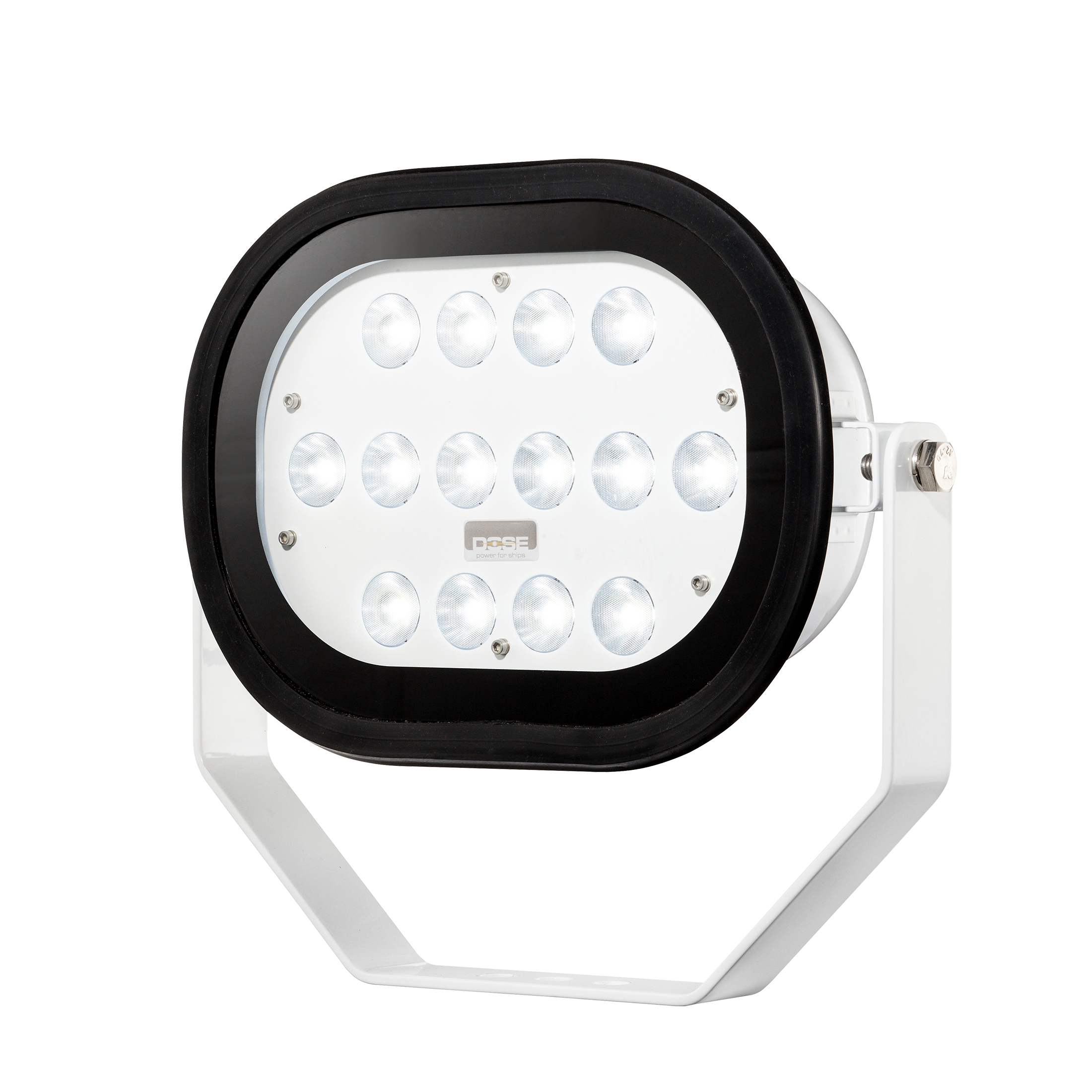

Dose Auriga 200 V3 LED Stainless Steel Floodlights

New improved design, luminous flux appox. 1000 lm
Produktnummer: Auriga 200 V3
BESKRIVELSE

Auriga 200 V3 white

  • IP 67
  • Casing and bracket made of stainless steel, clear hard glass pane, resistant against temperature changes
  • Casing powdercoated RAL 9016
  • Cable gland: M18 x 1.5 (IP 68)
  • Input voltage: 85-264V AC, 12-375V DC, 24V DC
  • 14 x High Power LED modules
  • Output: approx. 280 lm / LED
  • Luminous colour: 6300K
  • Ambient temperature: -40°C up to 40°C
  • Light intensity in 10m: approx. 174 lx / 10m
  • Light intensity in 100m: approx. 21 lx
  • Illuminated area in 10m: approx. ø 5 m
  • Illuminated area in 100m: approx. ø 49,9 m
  • Luminous flux: approx. 3.400 lm
  • Optical light output ratio: 100 lumen / watt
  • Beam angle: 28° (also available with 10° or 62°)
  • Made in Germany

Auriga 200 V3 red

  • IP 67
  • Casing and bracket made of stainless steel, clear hard glass pane, resistant against temperature changes
  • Casing powdercoated RAL 9016
  • Cable gland: M18 x 1.5 (IP 68)
  • Input voltage: 85-264V AC, 12-375V DC, 24V DC
  • 14 x High Power LED modules
  • Output: approx. 88 lm / LED
  • Wavelenght: 625 nm
  • Ambient temperature: -40°C up to 40°C
  • Light intensity in 10m: approx. 511 lx
  • Luminous flux: appox. 1.000 lm
  • Optical light output ratio: 100 lumen / watt
  • Beam angle: 28° (also available with 10° or 62°)
  • Made in Germany
